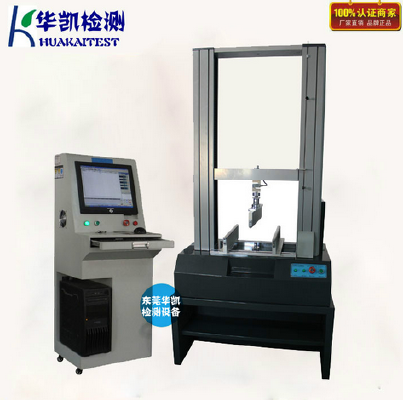

Intelligent electronic Universal testing machine

Intelligent electronic Universal testing machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Quarter
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-12-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  China
  • Brand Name:  HuaKai science and technology
  • Model Number:  sd267
  • Weight: 120.000 kg

Universal material tensile testing machine application

The product testing of various materials, semi-finished products and finished products of tensile strength, compressive strength and elongation, can do stripping, tearing, bending, bending and compression test, suitable for the use of metal, plastic, rubber, textiles, chemical products, wire and cable, leather and other industries.

Design standard for universal material tensile testing machine

D903 GB/T16491, ASTM, GB/T1040, GB/T8808, GB13022

Universal material tensile testing machine technical parameters

Capacity: 50, 100, 500, 1000kg, 2000kg, 3000kg, 5000kg (optional)

Unit switch: G, kg, N, LB (unit can be used to switch on their own)

Load resolution: 1/250000

Load accuracy: 0.25%

Max stroke: 1000mm (no fixture)

Test speed: 0.1 ~ 500 mm/min (adjustable)

Display device: full computer control (can be arbitrary production of the report data required by the customer)

Exterior dimension: (L * W * H) about 985 * 510 * 1600mm

Weight: 80kg

Power supply: 220V

Power system: Japanese servo motor and servo drive sensor

Transmission: Taiwan TBI seamless ball screw Taiwan Liming reducer synchronous belt drive (America celtron sensor)

Distribution: a set of tension fixture


  • Size:  1
  • Place of Origin:  China
  • Brand Name:  HuaKai science and technology
  • Model Number:  sd267
  • Weight: 120.000 kg
